Pneumatic pumping hose L=3m for Wonder Eurodain guns

Original Wonder

Wonder brand high-pressure hose is an original replacement part for the highly regarded Wonder Eurodainu pumping guns. The hose fits 1975, 1991, 2014 and 2015 Eurodain models. The rugged, proven design ensures durability and usability in workshop operating conditions.

Length 3 meters

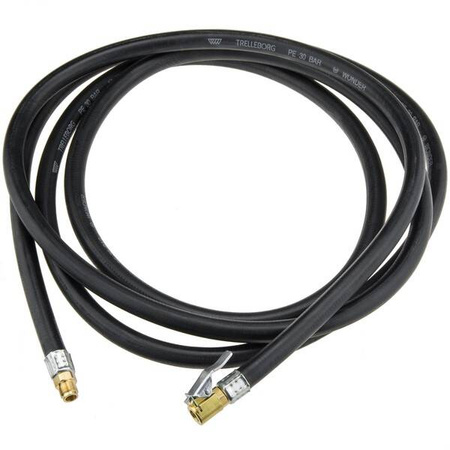

The length of the hose is 300 cm, which allows an extremely free range of motion when pumping and access to hard-to-reach valves. The inner diameter is 7 mm, and the outer diameter is 13 mm. The hose can withstand a maximum pressure of up to 30 bar.

Hose ends

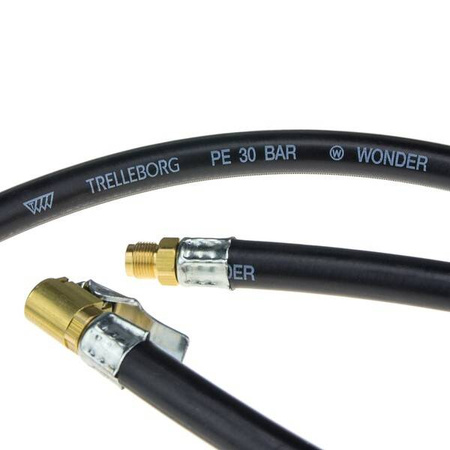

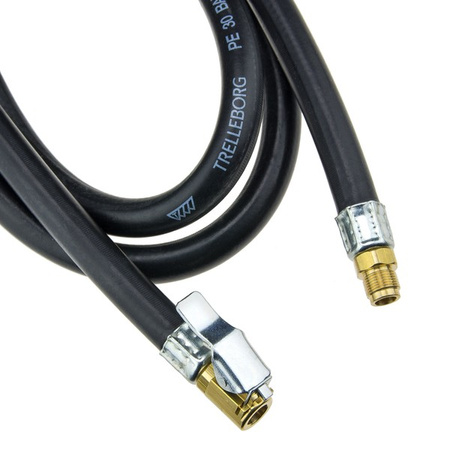

The hose is finished with galvanized steel crimps on both ends and equipped with connectors: a 1/4" brass male thread for connecting the gun and a steel and brass end with a clamp for car valves. A strong spring is built into the clamping end to prevent the hose from accidentally jumping off the valve of the wheel being pumped.

SBR rubber

The hose is made of SBR rubber, or styrene-butadiene rubber. This is a compound characterized by similar properties to natural rubber: high elasticity and very good mechanical resistance to abrasion, crushing and tearing. These properties are also retained at low temperatures.

Installation

To connect the hose to the pumping gun, manually screw the connector into the corresponding slot on the gun until it touches the gasket, and then tighten by a quarter turn with a 12 mm wrench.
