Wąż hybrydowy RQfrost prosty 15m (9,5/15,5mm) - RQS

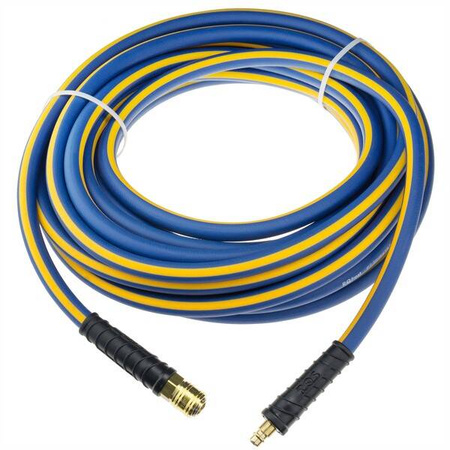

RQfrost hybrid pneumatic hose 9.5 x 15.5 mm - 15 m
Application of RQfrost hoses
RQfrost hoses are straight-type hybrid flexible hoses designed for use in industrial and workshop pneumatic installations. They are perfect for connecting various types of pneumatic machines and tools to compressed air supply.
RQfrost - flexible at any temperature
The operating temperature range of the forged hose is between -20°Cand +60°C. The hose's blend of synthetic NBR rubber and PVC plastic retains its properties at temperatures from -40°Cto +80°C. As a result, ahoseused outdoors during freezing temperatures or in cold storage will maintain good flexibility, a small bending radius and provide adequate comfort.
Hybrid resistance

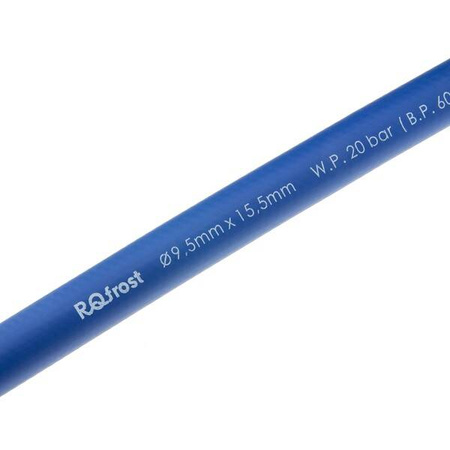

The hybrid material of NBR and PVC, the outer layer reinforced with polyester braid and thick walls make the RQfrost hose stand out for its very good resistance to deformation, bending and twisting. It is devoid of the so-called "shape memory" - even after prolonged pressure, it quickly returns to its original form. Walls with a thickness of 6 mm well protect the hose from accidental punctures or other damage, and the outer rubber coating performs a protective function against abrasion and abrasion.
RQS quick couplings

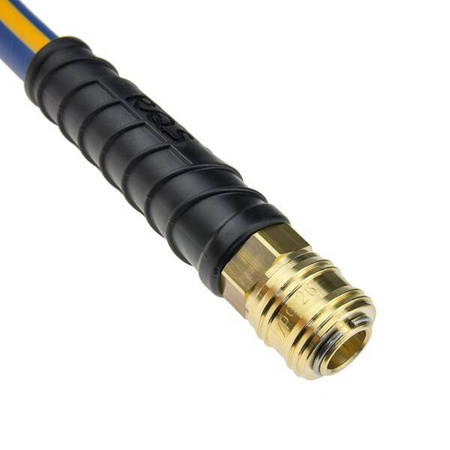

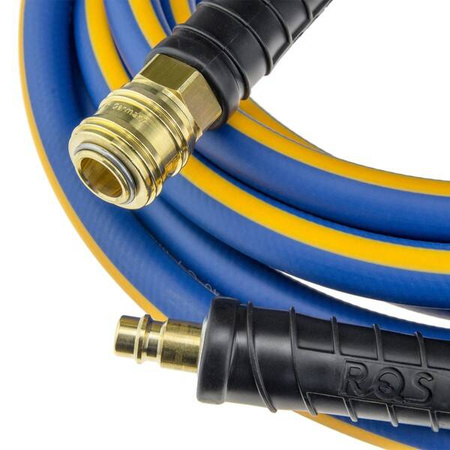

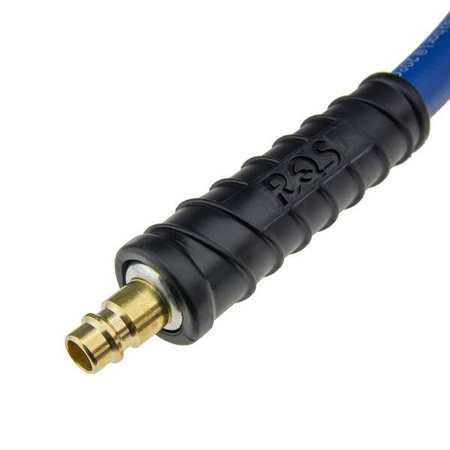

The ends of the hose are forged into industrial RQS type 26 quick couplings, conforming to the EURO DN 7.2 standard. The quick couplings are made of steel and brass. Steel springs and hardened locking pins perfectly protect the connector from accidental disconnection. A solid rubber cover prevents kinking and damage to the connector. The effective tightness of the connection is guaranteed by NBR rubber seals and the precision fit of the components.
Chemical resistance
The hose material shows high resistance to UV radiation, exposure to oils, fats, alcohols, ozone, glycol, freon and other light chemicals. It is also non-flammable.
Operational safety

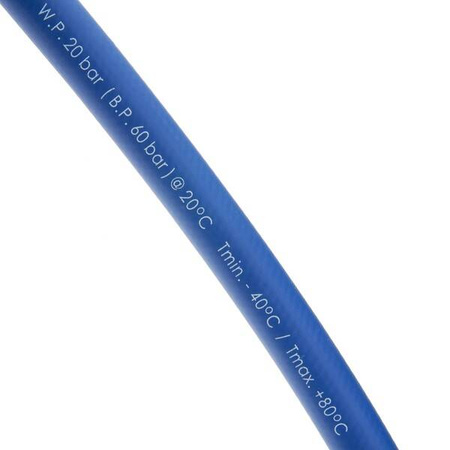

The maximum working pressure of the hose is 20 bar (at 23°C). Safe use of RQSfrost hoses in pneumatic systems is ensured by a safety factor of 3:1.
RQS quality
RQS is a well-known brand in the pneumatic industry - it offers products that guarantee high quality and reliability. The combination of well-thought-out solutions with perfect workmanship is confirmed by the numerous satisfied users of RQS products around the world.
