Podnośnik off-road / farmerski FARM JACK 45" Hi-Lift 3T
Farm / off-road lift
FARM JACK 45" HI-LIFT 3T
A farm jack high lift is an essential piece of equipment for any 4x4 off-roader. There is no better tool for getting a car out of an off-road trap than a hi-lift, as these jacks are popularly called. The hi-lift will also find many uses on farms, in forestry work, on construction sites.
Versatile Farm Jack 45"
The Farm Jack 45" Hi-Lift 3T model signed by STIX Tool is a device that - skillfully used - will allow not only lifting, but also spreading, clamping or pulling. If the vehicle is used off paved roads and gets stuck in the mud or on ruts, the Hi-Lift 3T will prove to be the best way out of an emergency situation without the need to call for help. After lifting the car, you can put traps under the wheels or flip the car out of the rut.
Lift with 3 tons of lifting capacity
The load capacity of the Hi-Lift 3T farmer's jack is 3,000 kg. The lifter does not require any source of energy other than human muscle power - however, lifting the load is surprisingly easy, thanks to a long enough lever.
Lifting at 97 cm
The Hi-Lift 3T 45" farmer's lift allows lifting a load to a maximum height of 97 cm. Thus, with the help of the farmer's lift, you can lift vehicles with high ground clearance - high-suspended chassis and not only off-road cars, but also farm trailers, tractors, etc.
Tradition and professionalism
Hi-lift is a unique device that withstands operation in all conditions. Because of its capabilities, it can replace specialized equipment, which is why it is often used by professional emergency services. Invented more than a century ago in the USA, hi-lifts still have no competition in their class.
Hi-Lift 3T - simplicity, functionality and reliability
Farm Jack Hi-Lift 3T is a mechanical device with high efficiency, simple yet reliable design and easy operation:

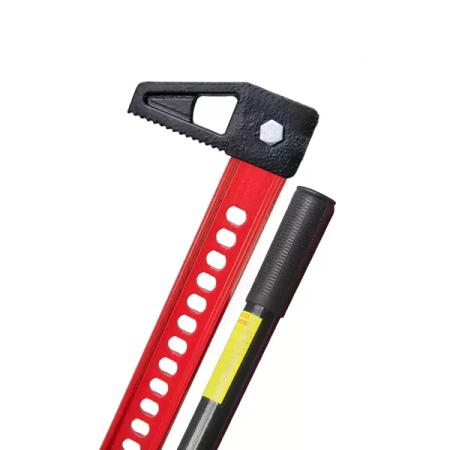

- hardened steel column with round holes is the main component of the hi-lift's 116 cm (45") high design,

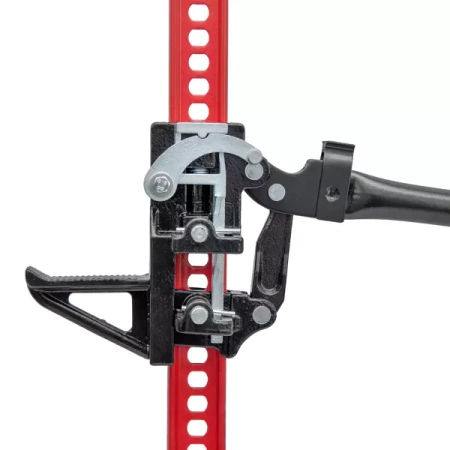

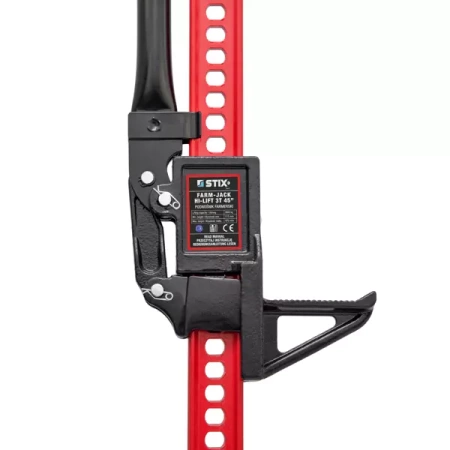

- a ratchet mechanism with a lifting foot that moves along the column, equipped with two pins that take the place of the following holes during lifting,
- reverse lock - the direction of movement of the up/down mechanism can be quickly switched by latching or releasing the so-called reverse lock,
- quick raise/lower of the mechanism - the operation of the lift is simplified by the function of quick movement of the mechanism along the column without the need to move the lever each time (in this way it is easy to pull the footer up under the bottom of the vehicle),

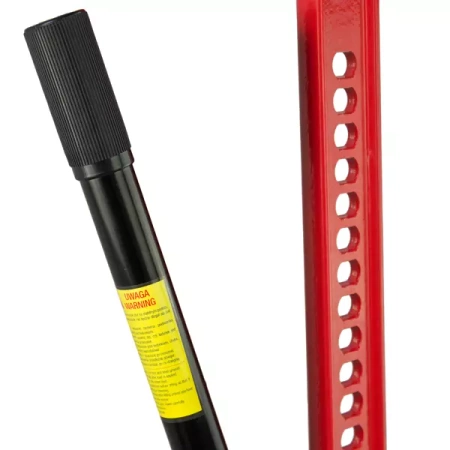

- the lever withalength of 85 cm, ending in a rubberized handle and equipped with the ability to lock it in the vertical position on the lift column.
Safety notes:
It is forbidden to use more than one Hi-Lift at the same time, such as two or four to lift an entire vehicle. Lifting of entire vehicles is possible only with the use of workshop lifts, i.e. 2-column, 4-column, scissor or other allowing stability for this type of operation.
It is not permissible to use a Hi-lift to support or stabilize a load. Using a hi-lift for such a purpose may result in the load slipping off and serious injury to the user. Always safely stabilize and properly support the load being lifted.
